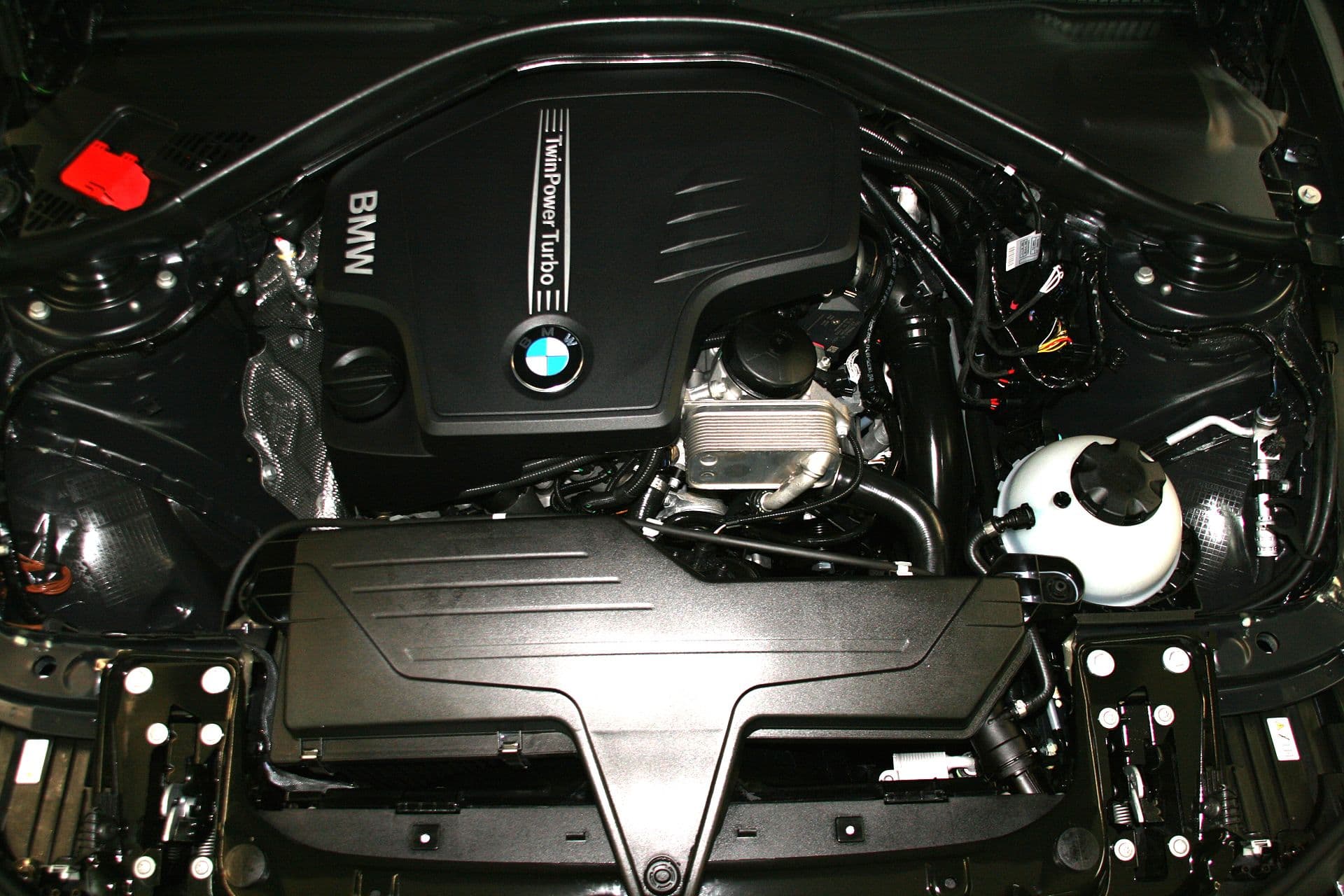

BMW N20 Timing Chain Guide Failure: Catching The Warning Signs Before Catastrophic Engine Lock
Reported Symptom:
"A distinct, high-pitched whining noise coming from the front engine bay area that increases directly with RPM revs. Often accompanied by a sudden drivetrain malfunction warning light or a low oil pressure indication on the central display track."
Technical Analysis & Root Cause
The early factory timing chain guides were manufactured using a brittle plastic poly-composite substrate that degrades rapidly under thermal cycles and long factory-recommended 10,000-mile oil change intervals. The plastic guide rails fracture, breaking apart into small fragments. These sharp plastic shards fall straight down into the oil pan pool, getting sucked up into the oil pump pickup screen. This starves the upper cylinder head valvetrain of vital lubrication, quickly causing the chain to stretch, jump timing teeth, and slam the intake valves into the pistons.
Expert Diagnostic Run-Sheet
- Remove the oil filler cap and manually probe the timing chain track with a pick tool to test for loose physical slack.
- Drop the structural engine oil pan assembly block down to look for broken orange or brown plastic guide shards.
- Check the oil pump pickup strainer assembly screen under high-intensity light for plastic grit blocking flow holes.
- Hook up a factory ISTA diagnostic terminal array to read specific camshaft correlation fault codes stored in memory.
Preventative Maintenance Counsel
If your vehicle was manufactured before January 2015 and is still running on the original factory guide rails, replacing the assembly with the updated, redesigned silver/white premium upgraded components is critical preventative insurance. Dropping your oil change intervals down to a strict 5,000-mile cycle using premium high-thermal oils like LIQUI MOLY Molygen protects the new guide shoes from pre-mature chemical breakdown.
